The bridge between
your product and what the customer needs.
The Ethernet Bridge is a headless, display-free gateway that sits at the application layer — translating what your hardware speaks into exactly what the deployment requires. High-speed Ethernet, Wi-Fi and Bluetooth, legacy RS485/RS232, and USB HID, all on a low-profile, low-maintenance unit. Customisable as per requirement.
Ethernet
High-speed IP hub
Wi-Fi + BT
Universal wireless
RS485 / RS232
Legacy bridge
USB HID
Peripheral support
4 MB Flash
Local logging (no SD)
7–24 V DC
Wide voltage input
Application-Layer Bridge
One unit between capability and requirement.
Your product speaks one language. Your customer's deployment expects another. The Ethernet Bridge lives in between — a customisable application layer that maps what the hardware can do onto exactly what the site needs, without touching the product itself.
YOUR PRODUCT
Native protocols, serial buses, and data formats your hardware ships with — fixed, certified, and unchanged.
Ethernet Bridge
Customisable application layer — protocol translation, mapping, and logic tuned per deployment.
CUSTOMER REQUIREMENT
The IP transport, integration points, and audit behaviour the site demands — delivered without re-engineering the product.
Interfaces
Everything plugs in — wired or wireless.
From modern IP networks to legacy radio gear, the Ethernet Bridge speaks it all on one low-profile unit. No daughterboards, no external display.
ETHERNET
Network Hub
High-speed Ethernet control for seamless IP-based data transmission across the deployment.
WI-FI + BLUETOOTH
Universal Wireless
Integrated Wi-Fi and Bluetooth for flexible deployment and local device management.
RS485 + RS232
Legacy Bridge
Dedicated serial ports to integrate older telecom and radio hardware into the IP stream.
USB HID
Peripheral Support
USB HID capability bridges human-interface devices directly into the network stream.
Built for the field
Secure, low-profile, low-maintenance.
Optimised for COTS deployments where the unit has to disappear into the rack and keep running — no display, minimal upkeep, full audit trail.
Headless by design
Display-free for secure, low-profile, low-maintenance operation — nothing to break, nothing to expose.
On-board storage
4 MB flash slot for secure local data logging, audit trails, and configuration backups. No SD card.
Wide voltage input
Operates reliably on 7 V to 24 V DC, tolerating real-world supply rails in the field.
Visual diagnostics
Integrated LED indicators report power, link, and data-activity status at a glance.
Simple maintenance
Direct USB programming for rapid firmware updates and system configuration.
Customisable per requirement
The application layer is tuned to the deployment — mapping, logic, and behaviour built to spec.
The Hardware
Every port, every angle.

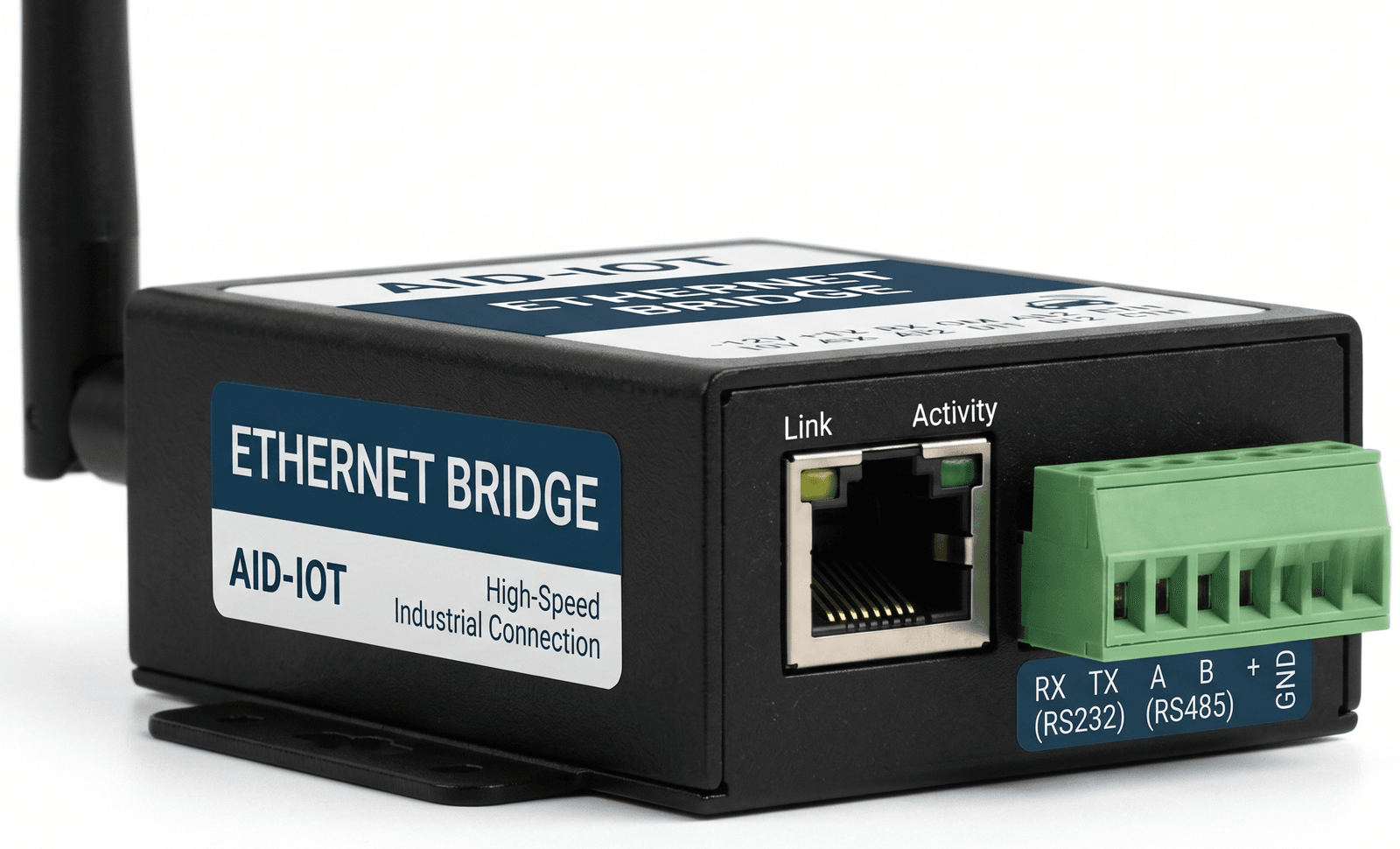

A compact, rugged enclosure with antenna, RJ45 Ethernet, the RS485/RS232 terminal block, status LEDs, wide-input power, and a recessed reset — laid out for clean panel mounting.

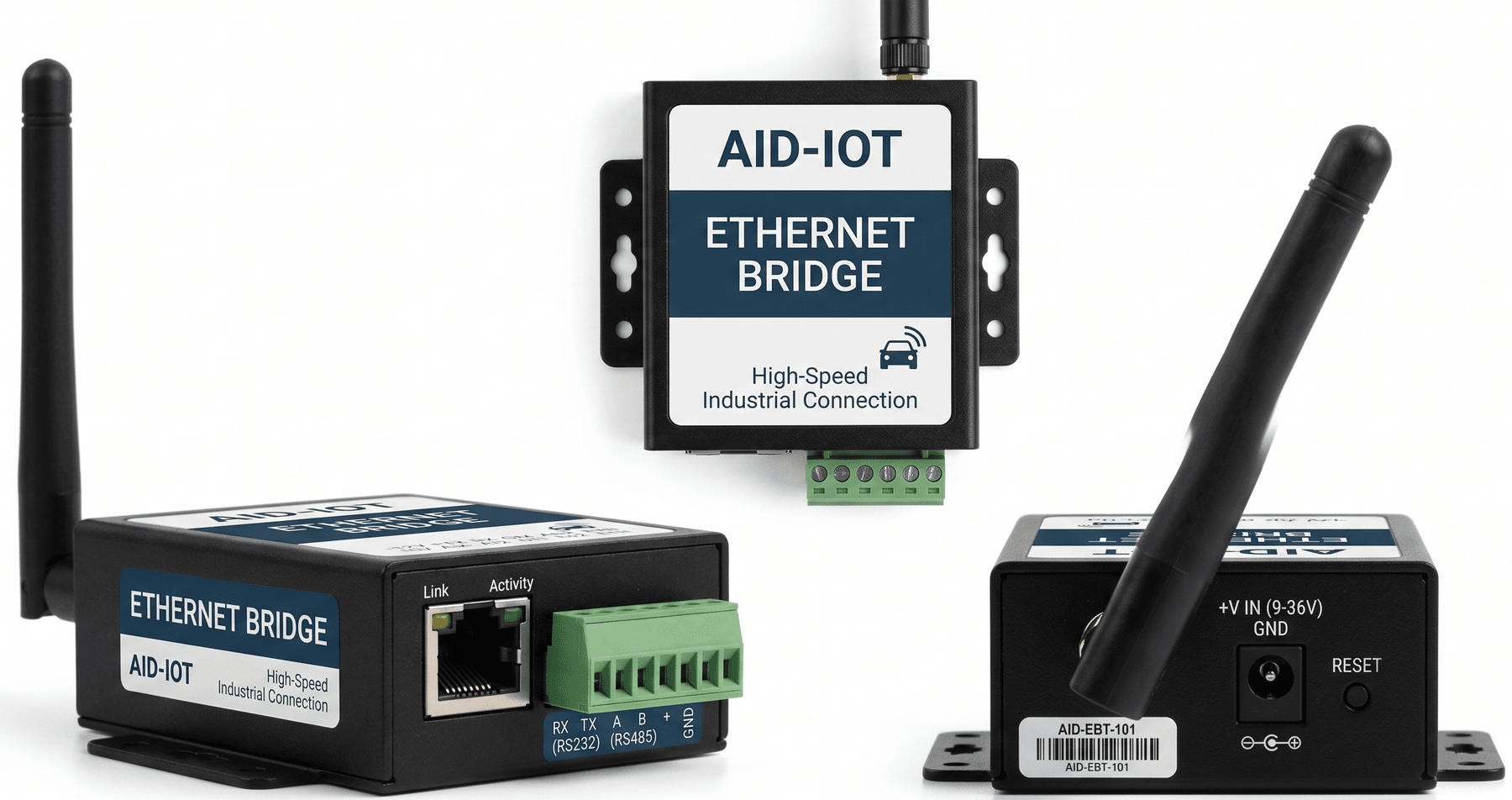

Front · rear · top — full connector layout
Specifications
The numbers behind the bridge.
A snapshot of the design, connectivity, power, and diagnostics shipped on every Ethernet Bridge unit.
DESIGN
Form & Operation
- Configuration
- Headless — display-free
- Target use
- COTS deployments
- Profile
- Low-profile, low-maintenance
- Programming
- Direct USB
CONNECTIVITY
Interfaces
- Network
- High-speed Ethernet (IP)
- Wireless
- Wi-Fi + Bluetooth
- Serial
- RS485 · RS232
- Peripheral
- USB HID
POWER
Electrical
- Input voltage
- 7 V – 24 V DC
- Input type
- Wide-range DC
STORAGE & DIAGNOSTICS
Logging & Status
- On-board storage
- 4 MB Flash (no SD card)
- Use
- Logging · audit trails · config backup
- Indicators
- Power · Link · Data activity LEDs
